You’ve invested in fantastic amplifiers, cutting-edge speakers, and a top-tier head unit, but have you thought about the very foundation of your system’s performance: the wiring? Often overlooked, selecting the correct gauge (thickness) and length for both your power cables and speaker wires is absolutely critical for maximising your audio system’s potential in delivering optimum performance, safety, and prolonging the life of your components.
Skimping on wiring can lead to frustrating issues like diminished bass, distorted highs, amplifier overheating, and even potential fire hazards. Let’s delve into what you need to consider for both power delivery and audio signal integrity.
Why Cable Gauge (Thickness) and Length Matter
The primary goal of any audio cable is to deliver a stable, sufficient signal or current with minimal loss.
-
Amplifier Power (RMS) & Speaker Impedance: The more power (measured in RMS Watts) your amplifier delivers, and the lower the impedance (Ohms) of your speakers, the thicker your power and speaker cables need to be. Thicker cables have less electrical resistance, allowing more current and signal to flow freely.
-
Cable Length: Electrical resistance also increases with cable length. Longer runs mean more resistance, which can cause ‘voltage drop’. If your amplifier isn’t receiving its optimal voltage, or your speakers aren’t receiving a clean signal, it can lead to underperformance, overheating, and distortion.
.
Understanding Cable Gauges: AWG vs. Metric (mm²)
Car audio cabling is typically measured in two ways:
- American Wire Gauge (AWG): This is a counter-intuitive scale where a lower AWG number indicates a thicker wire. For example, 4 AWG is much thicker than 16 AWG. Common sizes range from 0 AWG (very thick power cable) down to 20 AWG (thinner speaker wire).
- Metric (mm²): This is more straightforward. A higher mm² value indicates a thicker wire. This refers to the cross-sectional area of the conductor. Common sizes include 0.5 mm², 1.5 mm², 2.5 mm², 4 mm², 10 mm², 20 mm², 35 mm², and 50 mm².
Here are some common approximate conversions used in the industry:
- 0 AWG ≈ 50 mm²
- 2 AWG ≈ 35 mm²
- 4 AWG ≈ 20 mm²
- 8 AWG ≈ 10 mm²
- 10 AWG ≈ 6 mm²
- 12 AWG ≈ 4 mm²
- 14 AWG ≈ 2.5 mm²
- 16 AWG ≈ 1.5 mm²
- 18 AWG ≈ 1.0 mm²
- 20 AWG ≈ 0.5 mm²
The Perils of Voltage Drop and Signal Loss
Voltage drop occurs when the voltage delivered to your amplifier or speakers is less than it should be due to excessive resistance in the cables. This ‘missing’ voltage isn’t just lost; it’s typically dissipated as heat within the cable, increasing resistance and stressing your components.
For Power Cables: Symptoms include diminished amplifier output, weak bass, distorted audio (especially at higher volumes), amplifier going into ‘protect’ mode, and overheating cables/amplifier. For Speaker Wires: Symptoms include reduced amplifier damping (leading to boomy bass), loss of dynamics and subtle audio detail, and general sound degradation.
General Guidelines for Power Cable Sizing
While a precise calculation involves Ohm’s Law and specific component data, here’s a general guide to help you choose the right gauge for typical car audio power installations:
|
Total System RMS Power
|
Cable Length (up to 3 metres / 10 ft)
|
Cable Length (3-5 metres / 10-17 ft)
|
Cable Length (5-7 metres / 17-23 ft)
|
|---|---|---|---|
|
Up to 50W
|
14 AWG / 2.5 mm²
|
14 AWG / 2.5 mm²
|
12 AWG / 4 mm²
|
|
50W – 100W
|
12 AWG / 4 mm²
|
10 AWG / 6 mm²
|
10 AWG / 6 mm²
|
|
100W – 200W
|
8 AWG / 10 mm²
|
8 AWG / 10 mm²
|
8 AWG / 10 mm²
|
|
200W – 500W
|
4 AWG / 20 mm²
|
4 AWG / 20 mm²
|
2 AWG / 35 mm²
|
|
500W – 1000W
|
2 AWG / 35 mm²
|
0 AWG / 50 mm²
|
0 AWG / 50 mm²
|
|
1000W – 1500W
|
0 AWG / 50 mm²
|
0 AWG / 50 mm²
|
0 AWG / 50 mm² (or thicker)
|
|
1500W+
|
Consult professional advice
|
Consult professional advice
|
Consult professional advice
|
Always round up if you’re between sizes or lengths. It’s always better to use a slightly thicker cable than one that is too thin.
General Guidelines for Speaker Wire Sizing
This table provides a general guide for speaker wire, considering both amplifier power per channel and speaker impedance.
|
RMS Power per Channel
|
Speaker Impedance
|
Cable Length (up to 2.5 metres / 8 ft)
|
Cable Length (2.5-5 metres / 8-16 ft)
|
Cable Length (5-7 metres / 16-23 ft)
|
|---|---|---|---|---|
|
Up to 50W
|
4 Ohm
|
20 AWG / 0.5 mm²
|
18 AWG / 1.0 mm²
|
16 AWG / 1.5 mm²
|
|
2 Ohm
|
18 AWG / 1.0 mm²
|
16 AWG / 1.5 mm²
|
14 AWG / 2.5 mm²
|
|
|
50W – 100W
|
4 Ohm
|
16 AWG / 1.5 mm²
|
14 AWG / 2.5 mm²
|
12 AWG / 4 mm²
|
|
2 Ohm
|
14 AWG / 2.5 mm²
|
12 AWG / 4 mm²
|
12 AWG / 4 mm² (or thicker)
|
|
|
100W – 200W
|
4 Ohm
|
14 AWG / 2.5 mm²
|
12 AWG / 4 mm²
|
12 AWG / 4 mm² (or thicker)
|
|
2 Ohm
|
12 AWG / 4 mm²
|
12 AWG / 4 mm² (or thicker)
|
Consult professional advice
|
|
|
200W+
|
4 Ohm
|
12 AWG / 4 mm² (or thicker)
|
Consult professional advice
|
Consult professional advice
|
|
2 Ohm
|
Consult professional advice
|
Consult professional advice
|
Consult professional advice
|
Essential Wiring Best Practices
- Go Big (Within Reason): If in doubt about either power or speaker wire, opt for the next thicker gauge. The small extra cost is insignificant compared to performance loss or potential component damage.
- High-Quality Cable: Always choose Oxygen Free Copper (OFC) cable for both power and speaker applications. Cheaper Copper Clad Aluminium (CCA) cables have higher resistance, are less flexible, and are prone to corrosion, negating your careful sizing efforts.

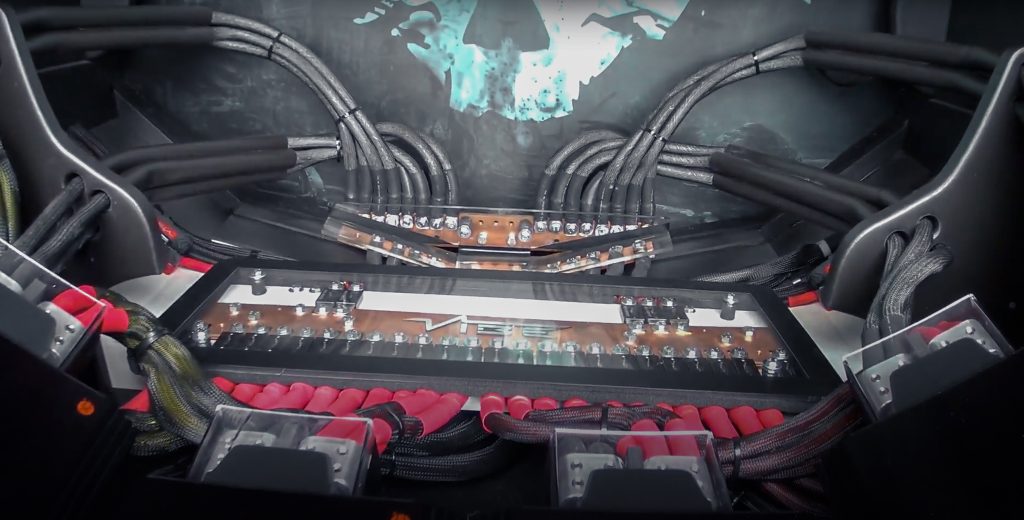

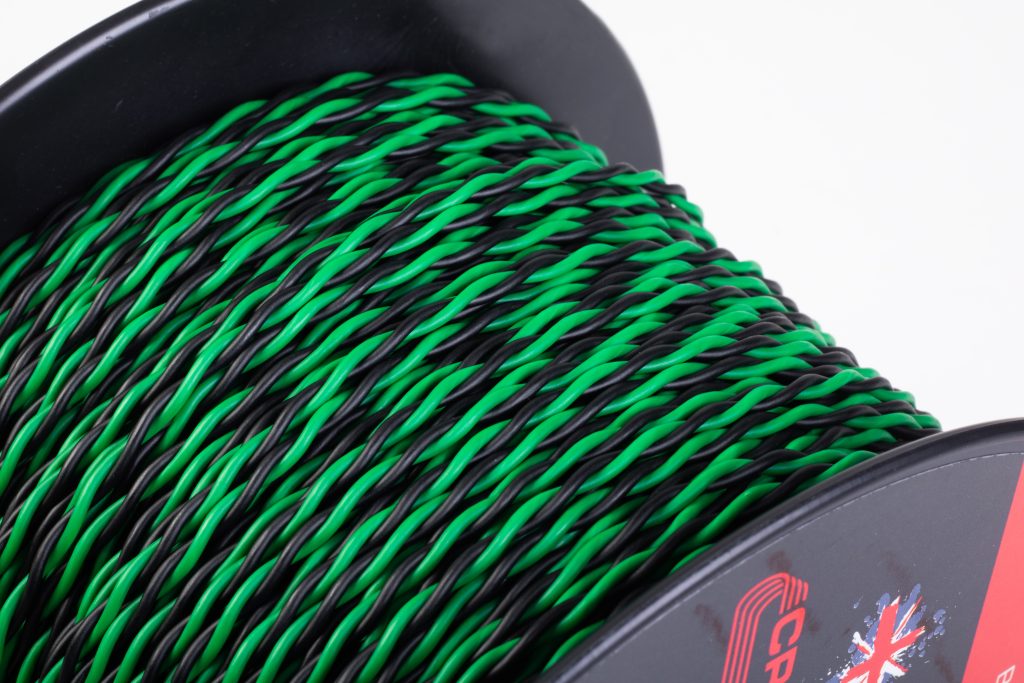

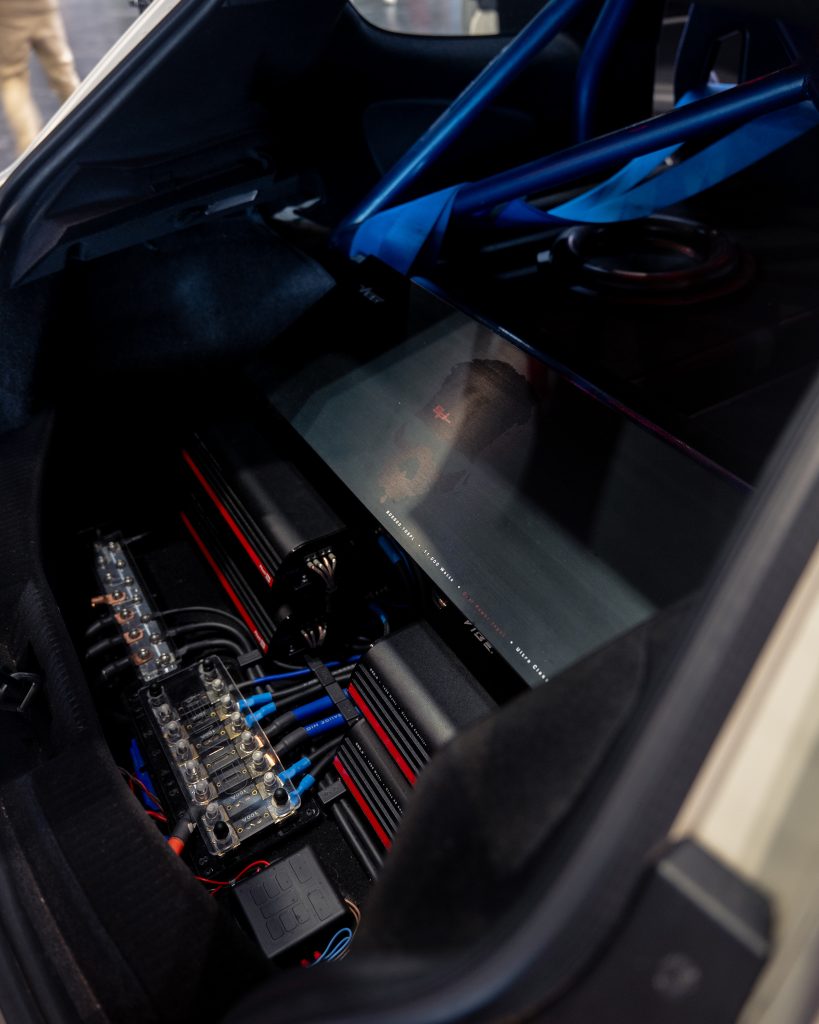

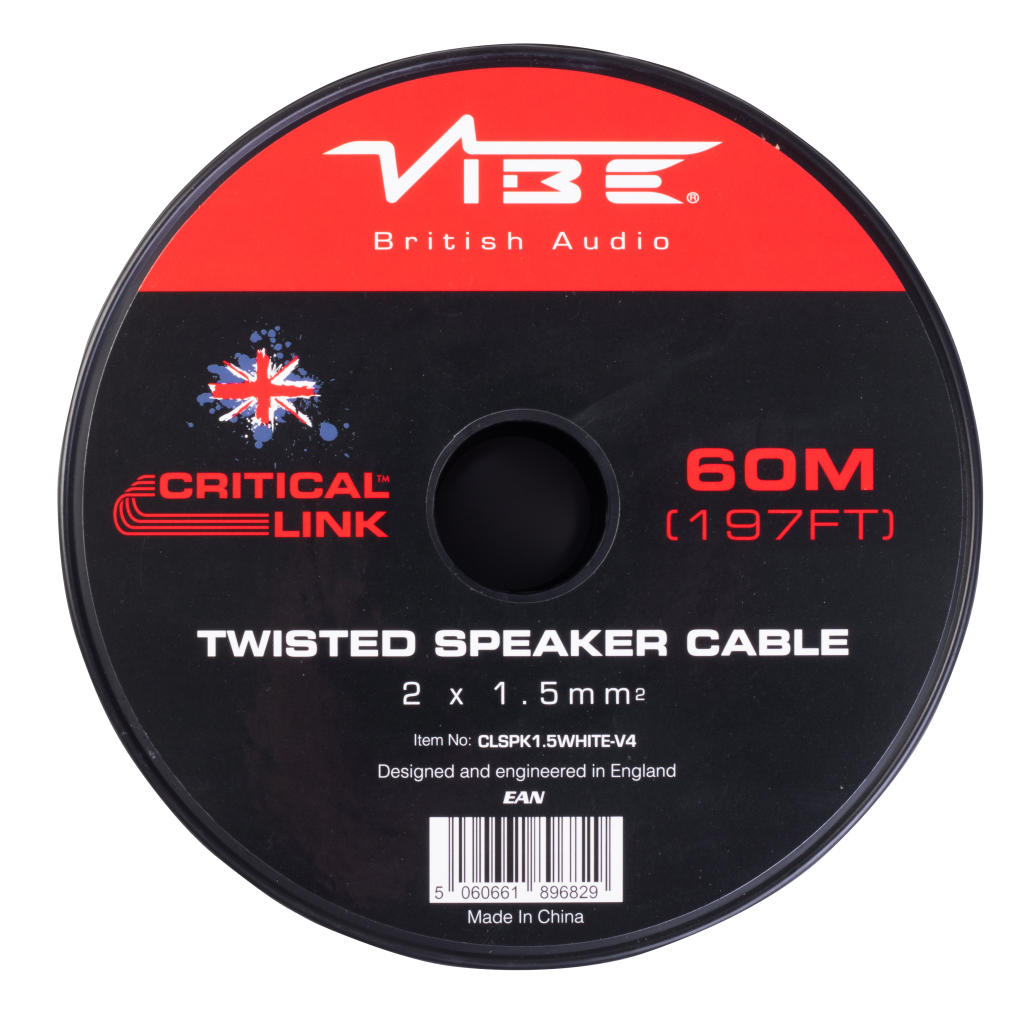

- Twisted Pair Design (Speaker Wire): For speaker wire, cables with a twisted pair construction (like VIBE’s Critical Link range) offer superior noise rejection, ensuring a cleaner audio signal by minimising electromagnetic interference.

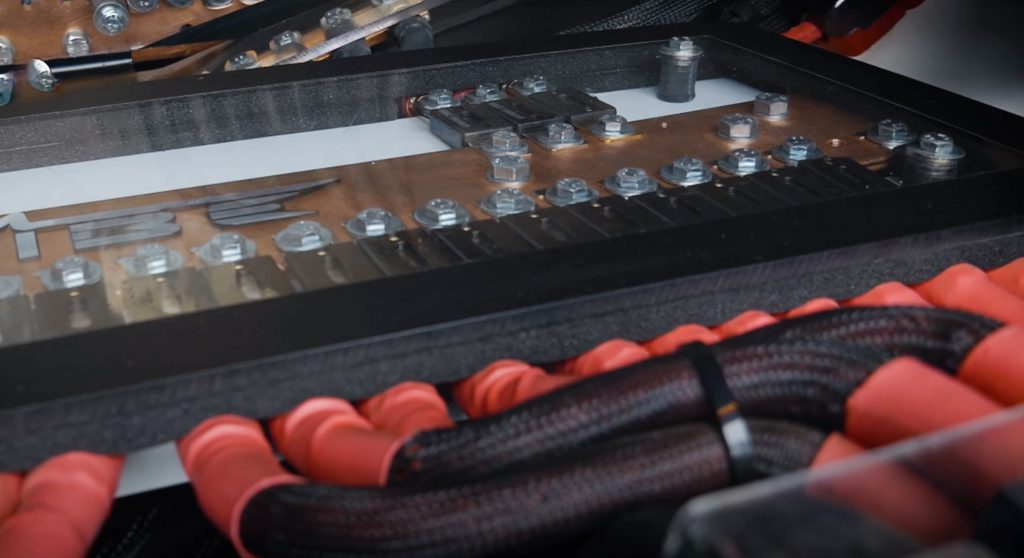

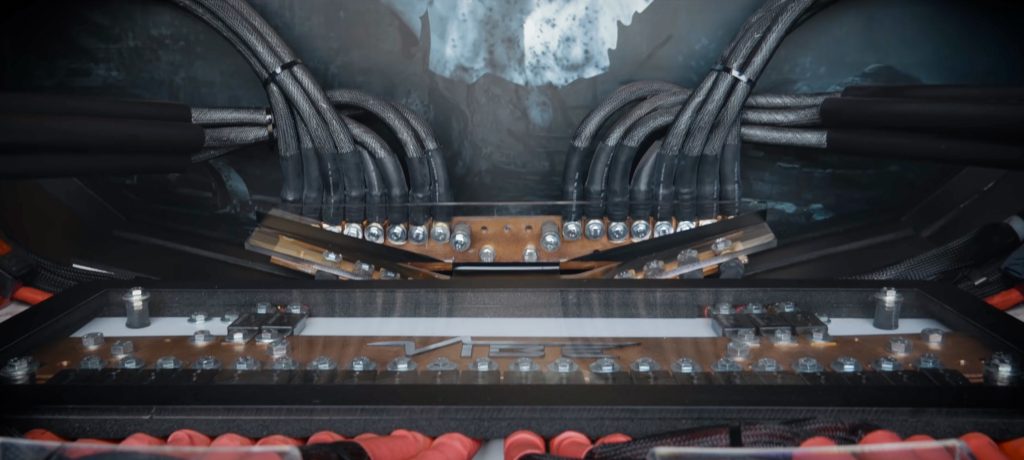

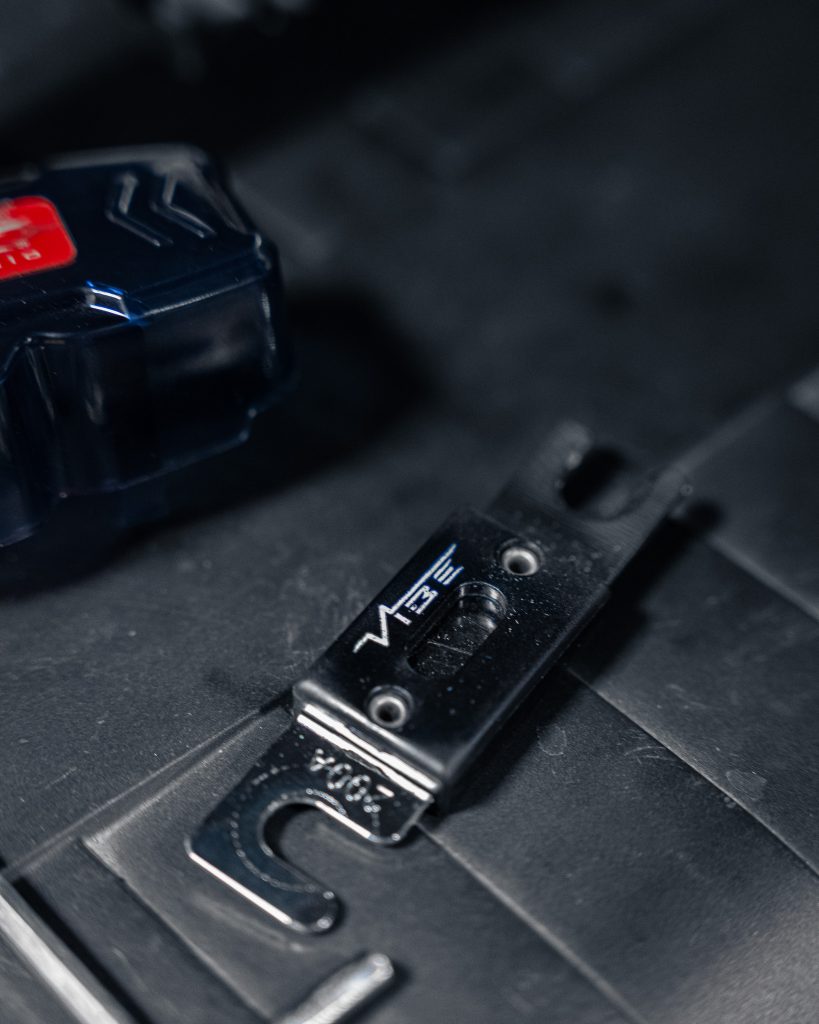

- Proper Fusing (Power Cable): An appropriate fuse, located within 45cm (18 inches) of the battery, is non-negotiable for your main power cable. This protects your vehicle from fire in case of a short circuit. The fuse rating should match your amplifier’s total fuse rating or be slightly higher (e.g., if your amp has two 30A fuses, use a 60A or 70A main fuse).
- Solid Grounding (Power Cable): A poor ground connection is as detrimental as a poor power connection. Ensure your ground cable is the same gauge and length as your main power cable, connected to a clean, bare metal point on the vehicle chassis.
- Proper Termination: Ensure all cable connections are solid. Use good quality crimp connectors, ferrules, or solder the ends for the best signal transfer and to prevent stray strands from shorting.
- Safe Routing: Route all cables away from sharp edges, moving parts, and sources of electrical interference (like existing factory wiring looms or vehicle computers). Use grommets when passing through firewalls or metal panels.
- Matching Lengths (Speaker Wire): For stereo speakers, try to keep the left and right speaker wire lengths roughly equal, even if one speaker is closer to the amplifier. This helps maintain proper stereo imaging and phase.
By taking the time to correctly size and install all your cables, you’re not just wiring your system; you’re building a robust foundation for truly exceptional in-car audio performance. Don’t compromise on the Critical Links that power your passion! Explore the VIBE Accessory range Here
