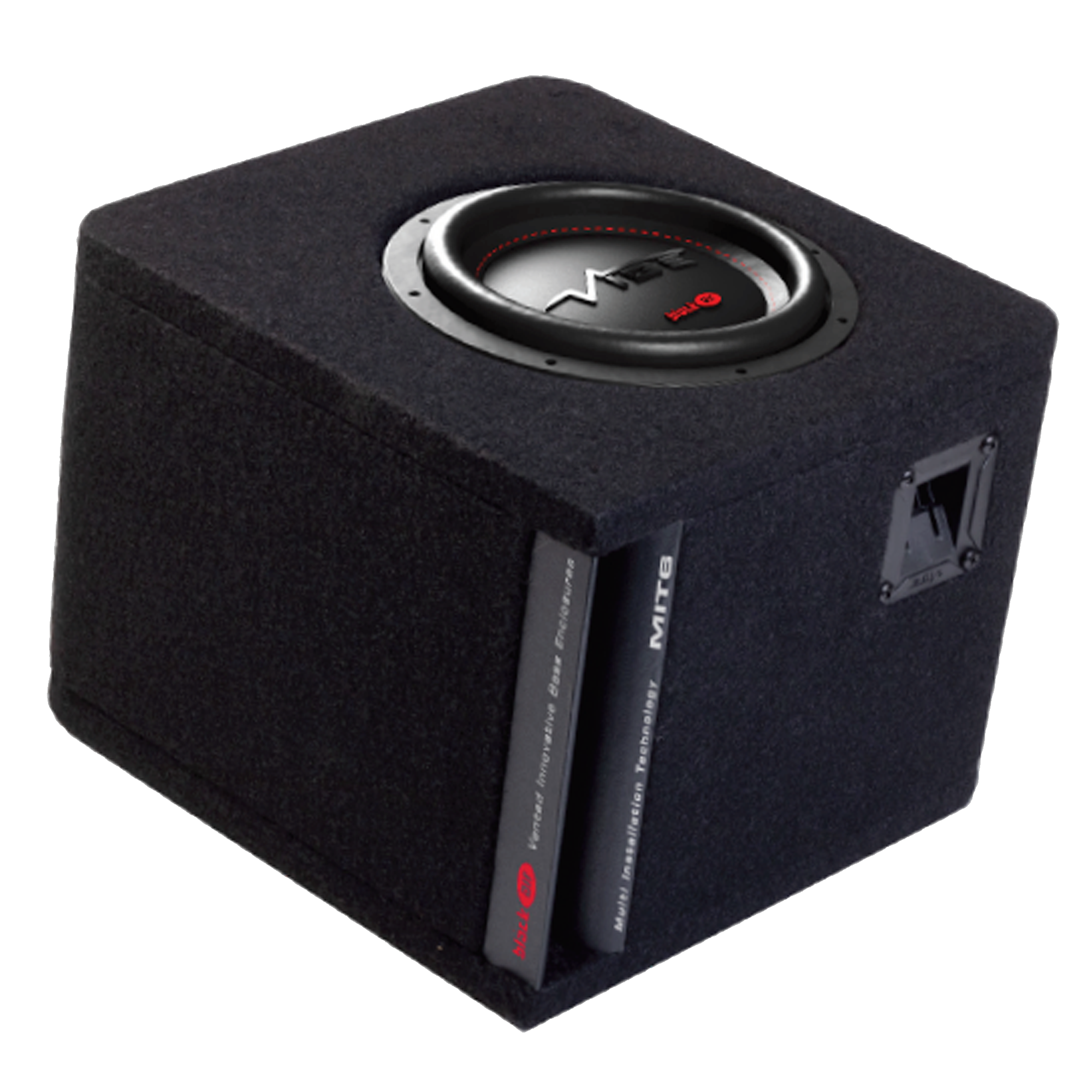

BAMIT6-V3 BlackAir 6.5 Inch Subwoofer Enclosure

We built the BAMIT6 for a problem we kept running into: people want proper bass, but they don’t want to lose half their boot to get it. So we made a finished, factory-tuned sub that fits behind a passenger seat and still hits hard.

It’s small. 270 mm wide, 260 mm deep, 210 mm tall. It’s a sealed-and-braced MDF cabinet with a 6.5″ dual-voice-coil driver already mounted and already tuned. You wire it to an amp and it sounds the way the engineering says it should. No fabricator, no guesswork, no empty box that arrives with no port tuning printed on it.

That last part matters more than most people realise. A subwoofer’s low end comes mostly from the box it sits in, not the driver on its own. Get the box wrong and even a good driver sounds thin or boomy. We did the box and the driver together, as one job, and validated the pair before it ever shipped.

£139.99

1 in stock

Need help fitting?

This product requires specific tools to fit, we recommend having this product installed by a professional

BAMIT6-V3 BlackDeath 6.5 Inch Subwoofer

WHAT’S IT FOR?

  • Compact car installs where you can’t give up boot space to a custom build
  • Behind-seat fits in extended-cab pickups, vans and 4×4s
  • Active multi-way systems that need a dedicated, tuned sub below the midbass
  • Marine and power sports installs, where a finished cabinet beats a loose driver-plus-box
  • Replacing a tired OEM sub with something properly engineered
  • Anyone who’d rather not specify an empty box and then guess at the tuning

Specifications

  • ENCLOSURE SPECIFICATION
  • Driver Configuration: 6.5″ (165mm) single driver, dual voice coil
  • Enclosure Type: Ported (slot-loaded)
  • Port Dimensions: 175 x 15 x 240mm slot port
  • Cabinet Dimensions (W x D x H): 270 x 260 x 210mm
  • Cabinet Material: MDF, sealed and braced
  • External Covering: Black carpet
  • Terminal Type: Junction box, rear-mounted
  • Mounting Hardware Gasket: PVC



  • DRIVER SPECIFICATION
  • Driver Size: 6.5″ (165mm)
  • RMS Power: 300W
  • Peak Power: 600W
  • Sensitivity: 82.32dB (1W/1m)
  • Frequency Response: 30Hz – 1kHz
  • Nominal Impedance: Dual 2 Ohms (DVC)
  • Wiring Options: 1 Ohm mono (parallel) 4 Ohm mono (series) Stereo
  • Cone Material: Treated Paper
  • Surround: Foam
  • Dust Cap: Polypropylene
  • Basket: Stamped steel
  • Spider: Treated cotton-phenolic (NPC) 132mm
  • Voice Coil Former: Aluminium 50.5mm (2 inch)
  • Voice Coil Winding: Copper, 26mm height, 4-layer
  • Magnet Structure: Y35 ferrite, double stacked, 134 x 60 x 17mm x 2
  • Magnet Total Mass: 2120g
  • Driver Mounting Depth: 100mm
  • Driver Mounting Diameter: 156mm
